Combiaraldo

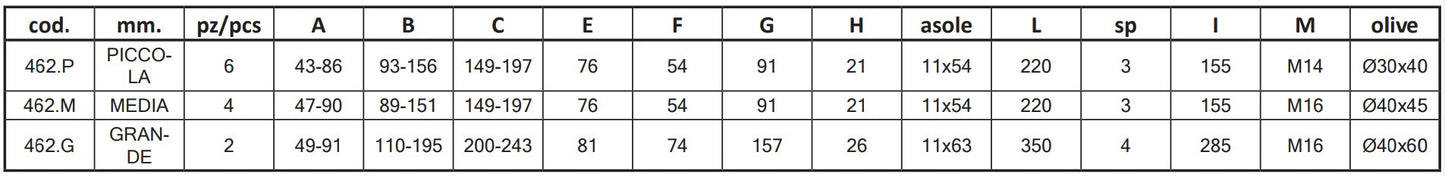

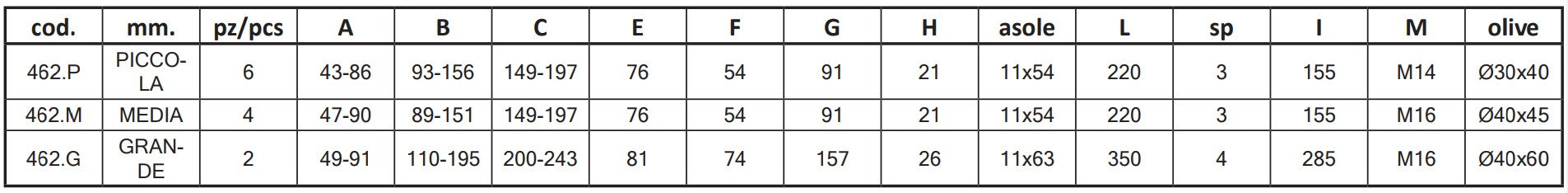

462 - Fully Adjustable Four Roller Guide Plate : Heavy

462 - Fully Adjustable Four Roller Guide Plate : Heavy

Size

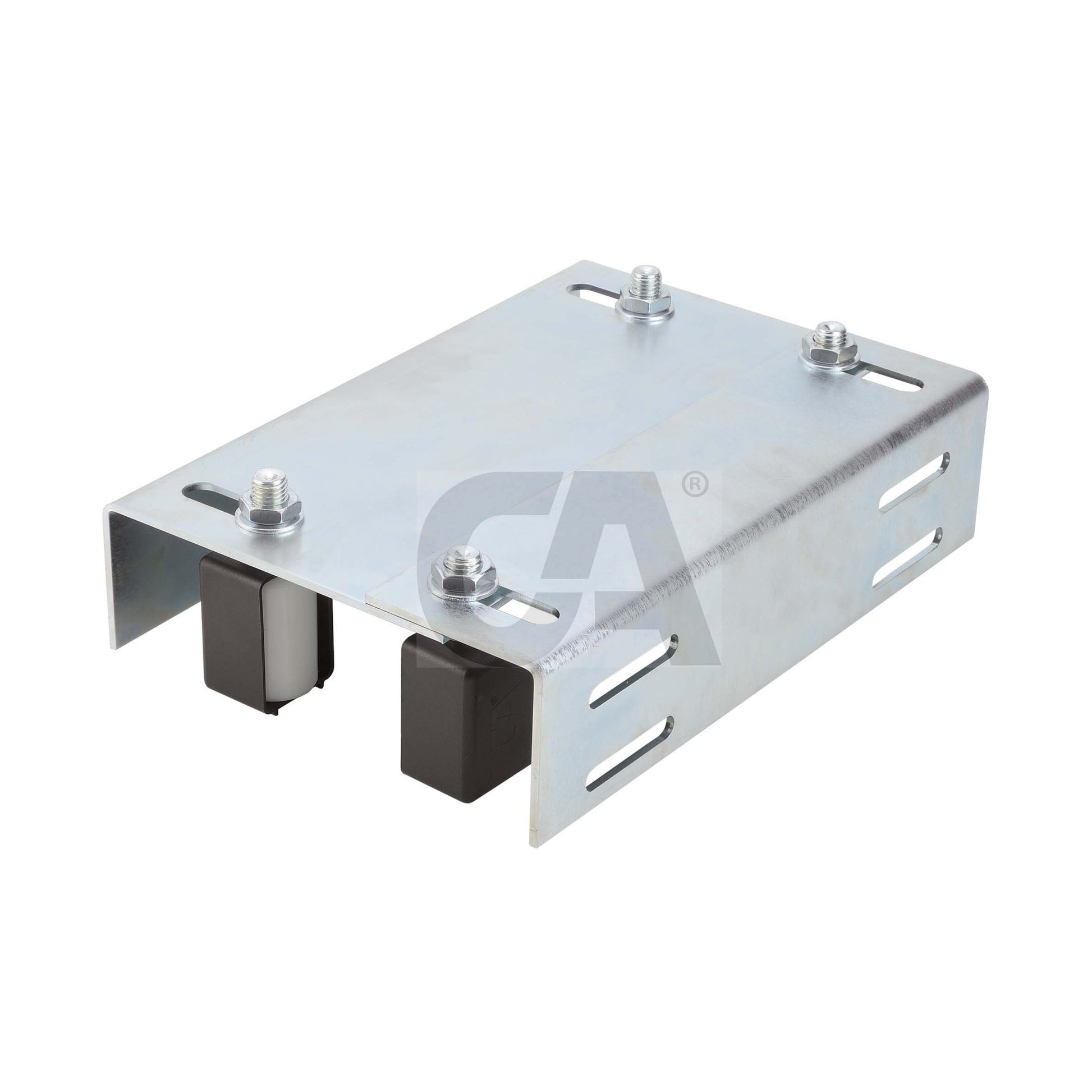

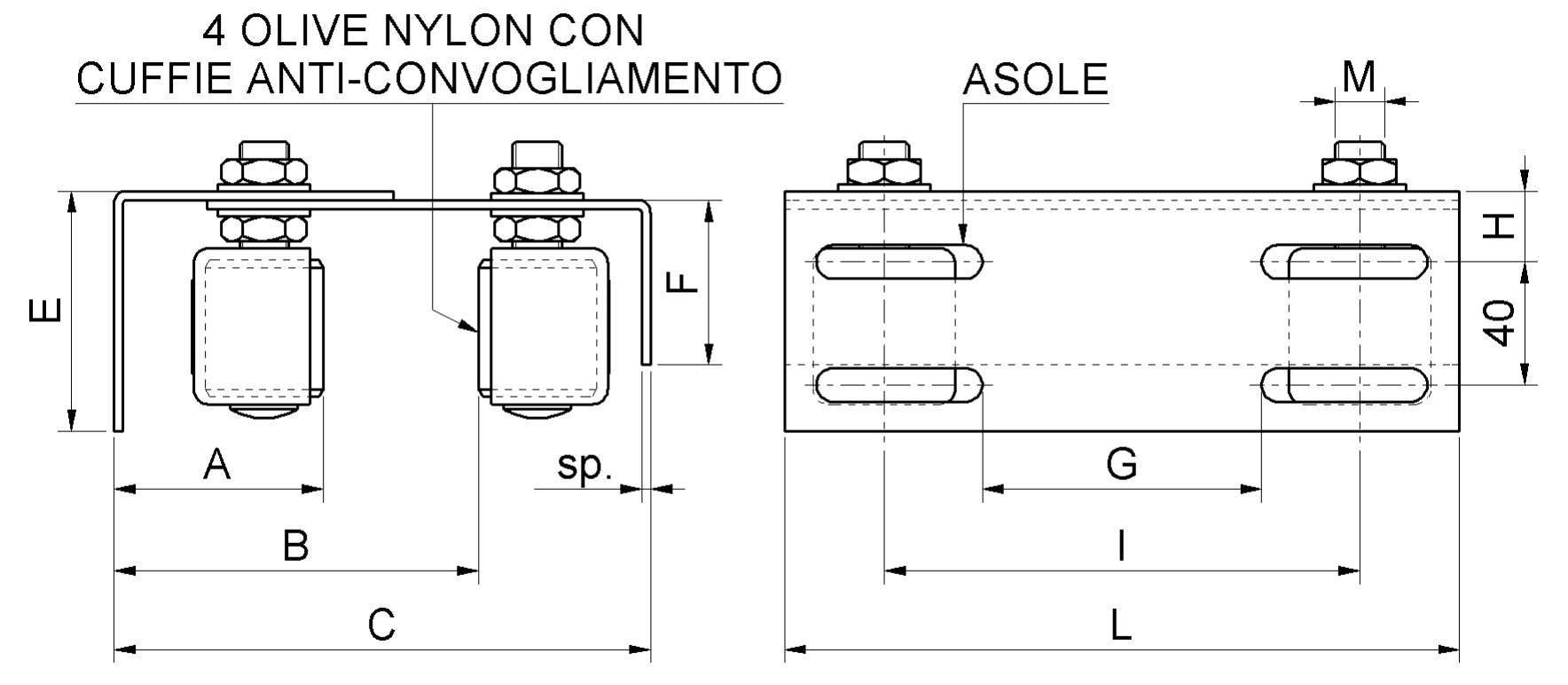

Galvanized and fully adjustable roller bracket with four nylon rollers. Suitable for both heavy sliding and cantilever gates.

A cantilever gate is a type of sliding gate that is suspended over the gate opening without the need for a track along the ground (Trackless Sliding Gate). Unlike traditional sliding gates that roll on wheels along a track, cantilever gates are supported by a system of 9 roller carriages installed on a concrete foundation. And the carriage moves inside a heavy C profile track welded below the gate frame.



  • No Ground Track: One of the main characteristics of cantilever gates is that they do not have a track running along the ground. This eliminates the need for regular maintenance to keep the track clear of debris.
  • Smooth Operation: Cantilever gates typically operate more smoothly and quietly than sliding gates with a ground track. The absence of friction with the ground allows for a smoother sliding motion.
  • Suitability for Uneven Terrain: Cantilever gates are well-suited for locations where the ground is uneven or where installing a ground track would be challenging. The gate is supported by a counterbalance system that allows it to span variations in ground elevation.
  • Reduced Maintenance: Because there is no ground track to maintain, cantilever gates often have lower maintenance requirements compared to traditional sliding gates.
  • Wide Openings: Cantilever gates are suitable for gate openings from 3m upto 18 m. They are often used in industrial, commercial, and residential settings where a large entrance needs to be secured.

Please be aware that our ecommerce platform is currently not live. If you have any orders or enquiries, kindly fill out the contact us form specifying the product you require. Alternatively, you can reach out to us via WhatsApp at +91 9859045045.
